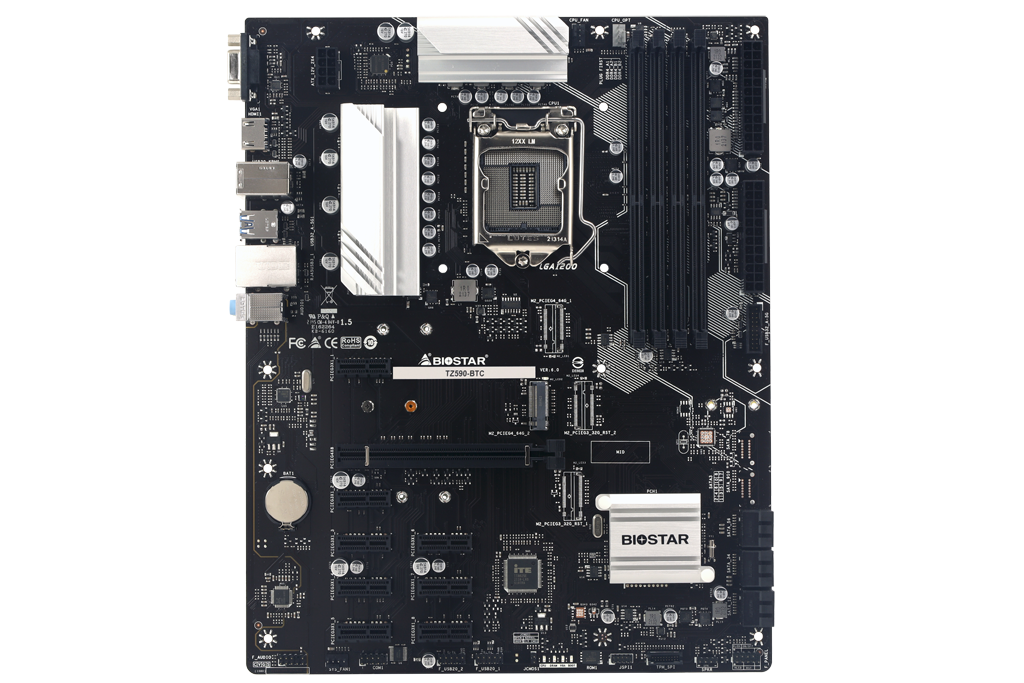

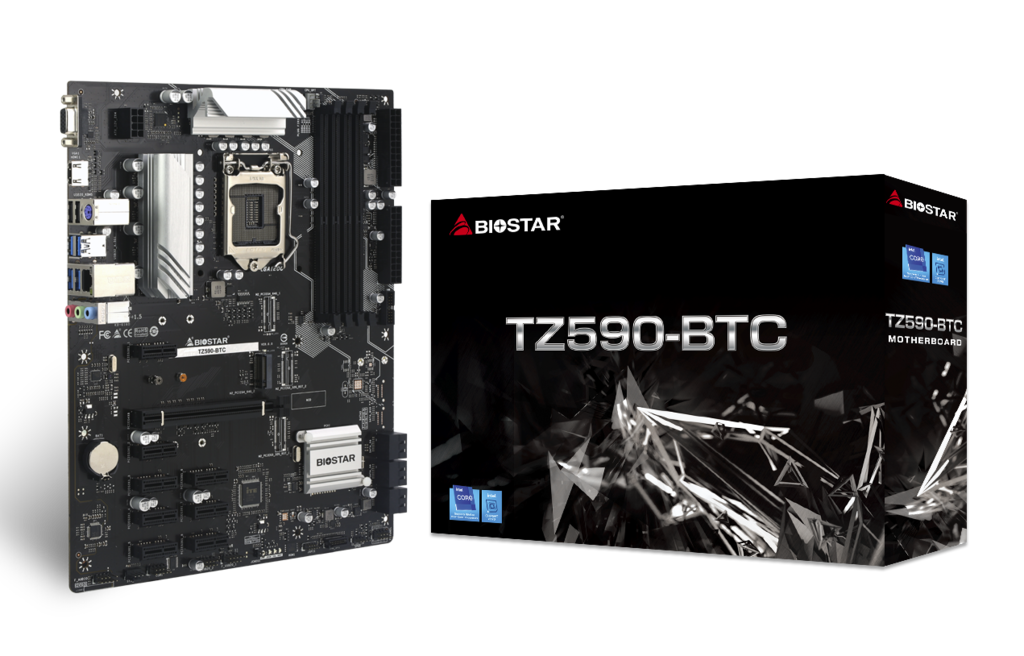

TZ590-BTC

Biostar

  • $155.00


Chipset Intel Z590
CPU SUPPORT Support for 10th/ 11th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE -- Total supports 1x M.2 socket and 6x SATA III (6Gb/s) ports
6 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket:
(M Key) Socket (M2_PCIEG4_64G_2)
Supports PCIE Gen4 11th Generation Intel Core™ only
Supports M.2 Type 2280 SSD module
Supports PCI-E 4.0 x 4 (64Gb/s)
Supports Intel Rapid Storage Technology and Intel Optane Technology

LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC887
7.1 Channels, High Definition Audio
USB 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT 8 x PCIe 3.0 x1 Slots
1 x PCIe 4.0 x16 Slot (x8 mode) (Supports PCIE Gen4 11th Generation Intel Core™ only)

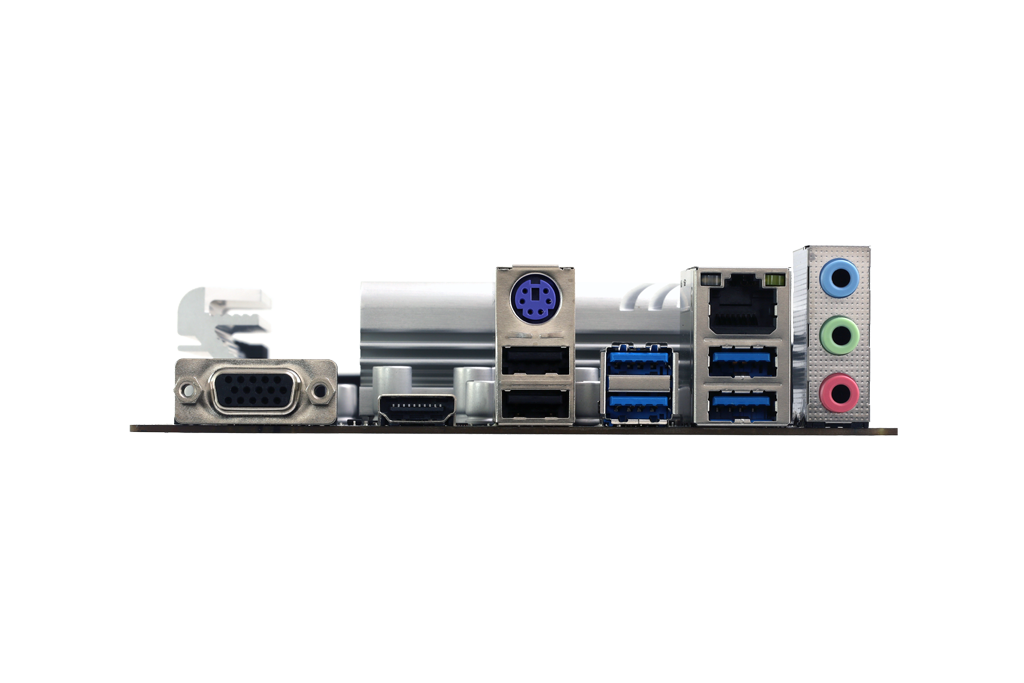

REAR I/O 1 x PS/2 Keyboard/Mouse Port
1 x HDMI Port
1 x VGA Port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O 6 x SATA III Connectors (6Gb/s)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x 8-Pin Power Connector
2 x 24-Pin Power Connectors
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES BIO-FLASHER
A.I FAN
PCI-E Slot Detection BIOS Boot Screen
PCIe M.2 4.0
