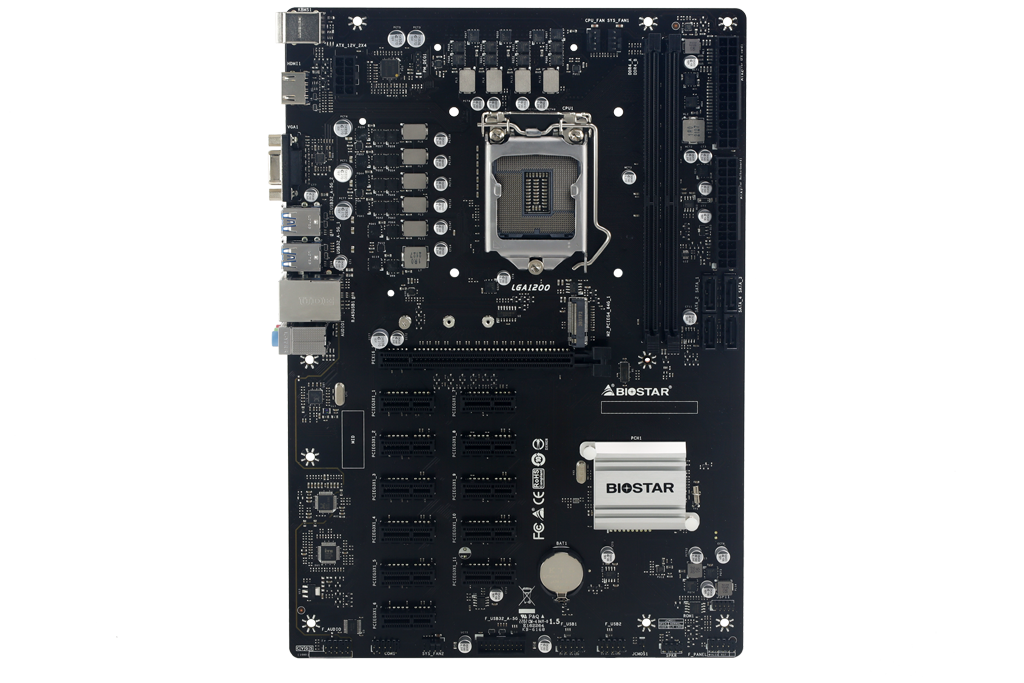

TB560-BTC PRO

Biostar

  • $240.00


Chipset Intel B560
CPU SUPPORT Support for 11th/10th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 -1866/ 2133/ 2400/ 2666/2800/2933
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE -- Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket:
PCIE x 4 (Only 11th CPU)
(M Key) Socket (M2_PCIEG4_64G_1)
Supports PCIE Gen4 11th Generation Intel Core™ only
Supports M.2 Type 2242/2260/2280 SSD module
Supports PCI-E 4.0 x 4 (64Gb/s)
Supports Intel Rapid Storage Technology and Intel Optane Technology
LAN RTL8111E
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
8 Channel (2 Channel from Front Audio)
USB 6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT 11 x PCIe 3.0 x1 Slot
1 x PCIe 4.0 x16 Slot (x16 mode) (Supports PCIE Gen4 11th Generation Intel Core™ only)
REAR I/O 1 x PS/2 Keyboard/Mouse Port
1 x HDMI Port
1 x VGA Port
4 x USB 3.2 (Gen1) Port
2 x USB 2.0 Port
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connector (6Gb/s)
2 x USB 2.0 Header (each header supports 4 USB 2.0 ports)
1 x 8-Pin Power Connector
2 x 24-Pin Power Connector
1 x CPU Fan Connector
2 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION ATX Form Factor Dimension: 30.48cm x 21.0cm ( W x L )
OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES PCI-E Slot Detection BIOS Boot Screen
